Description

Does the subframe of your Piaggio Zip 4-stroke need to be replaced? look no further, Zandri has now put together a complete kit!

Subframe Piaggio Zip 4-stroke 2V complete kit original

A common problem with the Piaggio Zip is that the subframe wears out over time, so that the engine no longer hangs directly under the scooter. Because a subframe consists of several parts, Zandri has put together a discounted kit that consists of original parts.

How do you recognize wear and tear on the Piaggio Zip 4-stroke subframe?

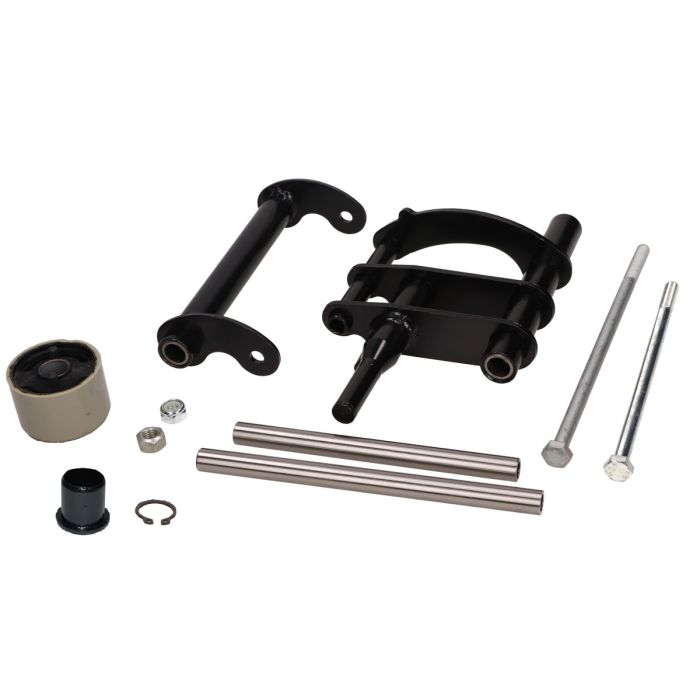

Stand by the scooter and hold the steering wheel with one hand and the other hand on the rear wheel. Make a side start on the wheel (horizontal) When the engine block moves along, the subframe needs to be replaced! A second check is simply standing behind the scooter and checking that the rear wheel is parallel to the scooter. What's in this original Piaggio Zip 4-stroke subframe kit? ● Subframe part 1 ● Subframe part 2 ● Subframe bearing bush ● Silent block engine suspension ● 2x Subframe bolt ● 2x Bus Engine Suspension ● 2x Nut ● 1 x Circlip

Piaggio Zip 4-stroke 2V subframe assembly complete kit original

It seems like a big job, but it's easy to do it yourself. You don't need any special tools except for a jack. Watch our assembly video where we replace a complete subframe.
