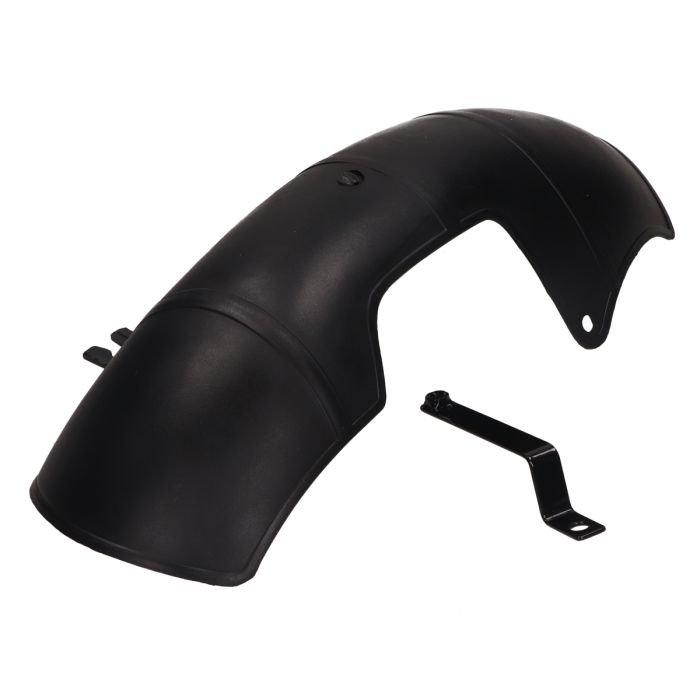

Rear fender top rear wheel China Grande Retro (horizontal)

This model rear mudguard is above the rear wheel. The connections on the outlet side are horizontal, advice is good to check with the old one because there are 2 types in circulation. The distance of the attachment on the outlet from heart to heart measured is 20cm.

A support bracket is used to attach the rear mudguard to the engine, on the crankcase side. The support bracket, which comes with it, is attached to the rear mudguard with 1 bolt of M6x15 with a widened head. You can find this bolt below.
