Cylinder Piaggio 50cc LC 40mm 2-stroke SP

A water-cooled Piaggio standard 50 cc cylinder for a competitive price. This 5 angular cylinder is suitable for the new type of Piaggio engine.

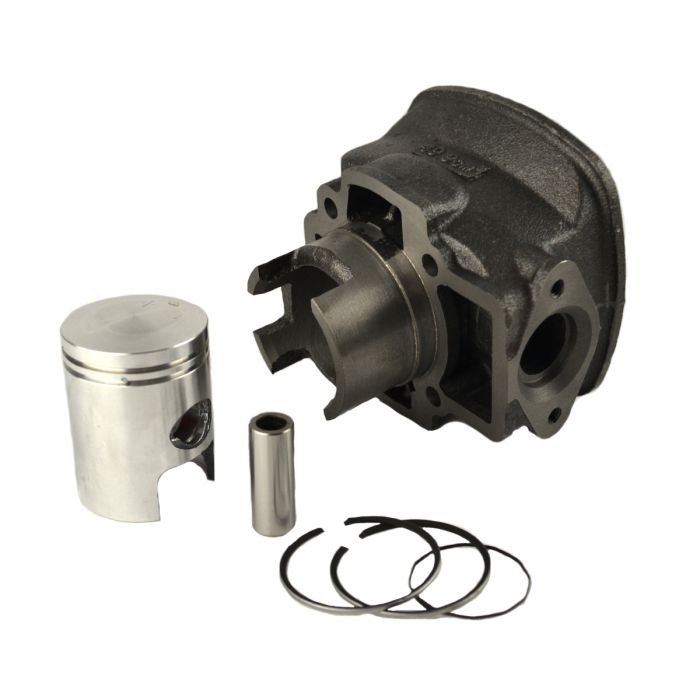

Properties LC Piaggio 50 cc cylinder

• Size: 40 mm
• 49 cc engine capacity
• Material: cast iron
• Water Cooled (LC)
• Piston pin included 12 mm
• Piston & Piston Rings Included
• New model cylinder 5 angular

Exclusive gasket kit!

When does a cylinder need to be replaced?

For example, a cylinder of SP is an essential part of your Piaggio 2-stroke scooter. A cylinder needs replacement when there is a scratch or bumper in the wall, so the Piaggio 2-stroke cylinder loses compression. Compression is the compression of the fuel/air mixture in the cylinder. With no or hardly any compression, the engine of your Piaggio 2-stroke scooter will no longer start or run badly. A scratch or bumper is a palpable unevenness in the cylinder wall. As a result, if you replace only the piston; this new piston can also immediately damage your Piaggio 2-stroke scooter! If a Piaggio 2-stroke scooter is poorly adjusted or has too little oil, the wear and tear of your SP 50 cc cylinder is a lot greater.

Mounting Piaggio 50cc LC SP cylinder

There are a number of points you should pay attention to to properly assemble this cylinder. The arrow on the plunger should point to the exhaust port. Please note that the piston lock clips are properly mounted. We recommend driving in the cylinder for 500 km.

Are you unsure whether this cylinder fits your scooter? Watch “fits” below
